Description of Product

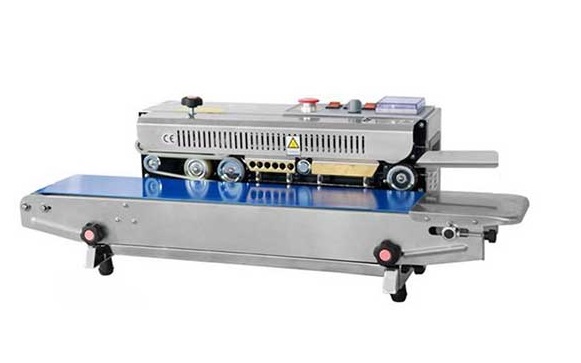

The Machine is ideal for sealing small packages, which adopts constant temperature control systems and stepless speed regualtions mechanism. It can seal plastic films made from various films continuously. Embossing Wheel And counting device is optional

INCREASES OUTPUT DUE TO FASTER SEALING

10MM SEALING WIDTH GIVES HIGH QUALITY FINISHING

CAN SEAL ANY HEAT SEALABLE ITEMS I.E POLYHTENE, ALUMINIUM FOIL

INCREASES PRODUCTIVITY

REDUCES LABOUR COST AND CLAIMS

DUE TO FAST OUTPUT, POWER CONSUMPTION IS LESS

Full Paint Housing Body

Half Stainless Steel Body

Power supply voltage (V/Hz)

AC 220/50

Motor power (W)

50

Electric heating power (W)

300×2

Sealing line speed (m/min)

0-12 (0-16)

Sealing width (mm)

10

Temperature control range (°C)

0-300

Printing category

Steel wheel indentation printing (optional)

Sealing center to conveyor table distance (mm)

20-40

Distance from the bottom plate to the inside of the conveyor table (mm)

60-120

Conveyor table size (L × W) (mm)

840×153

Maximum weight of the single piece of conveyor table (kg)

≤1

Conveyor table total load weight (kg)

≤3

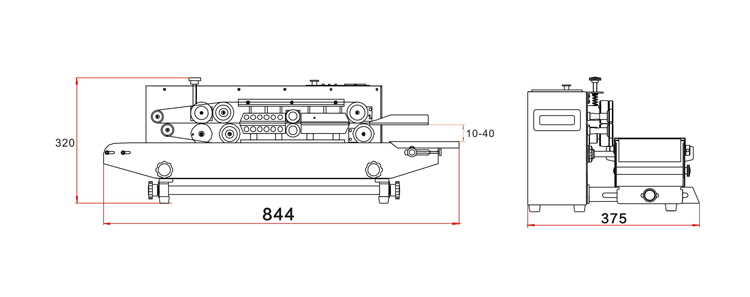

Dimensions (L × W × H) (mm)

840×380×320

Net weight (kg)

23
