Description of Product

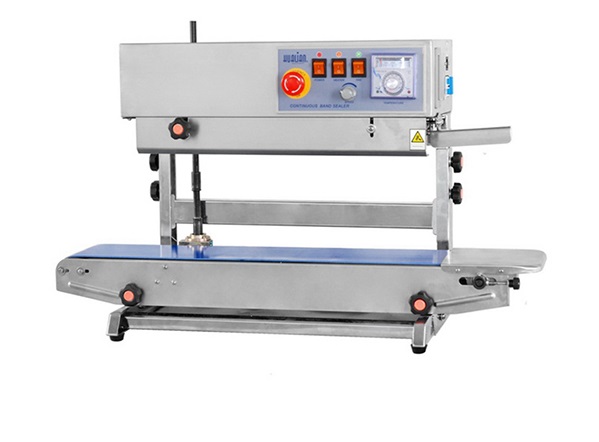

The Machine is Ideal for sealing small packages, which adopts constant temperature control sysstems and stepless speed regualtions mechanism. It can seal plastic films made from various filmls continuously. Embossing Wheel And counting device is optional
INCREASES OUTPUT DUE TO FASTER SEALING
10MM SEALING WIDTH GIVES HIGH QUALITY FINISHING
CAN SEAL ANY HEAT SEALABLE ITEMS I.E POLYHTENE, ALUMINIUM FOIL
INCREASES PRODUCTIVITY
REDUCES LABOUR COST AND CLAIMS
DUE TO FAST OUTPUT, POWER CONSUMPTION IS LESS
Counting device
Steel Embossing Letters for Printing
|
Voltage (V/Hz) |
AC 220/50 |
|
Power (W) |
50 |
|
Sealing Power (W) |
300×2 |
|
Sealing Speed (m/min) |
0-12 (0-16) |
|
Sealing Width (mm) |
10 |
|
Temperature Range (℃) |
0-300 |
|
Printing Type |
Steel wheel for embossing printing (optional) |
|
Distance from Sealing Center to Conveyor Table (mm) |
150-270 |
|
Conveyor Table Size (L×W) (mm) |
840×153 |
|
Max. Conveyor Loading for Single Package (kg) |
≤1 |
|
Overall Conveyor Loading (kg) |
≤3 |
|

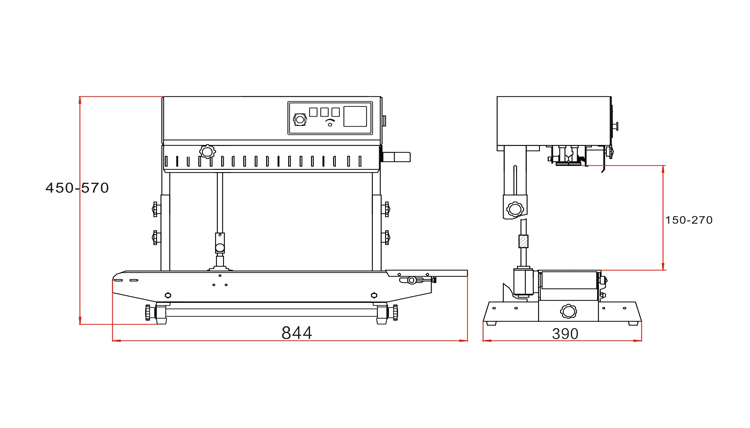

External Dimensions (L×W×H) (mm) |
840×380×450 |
|
Net Weight (kg) |
28 |
