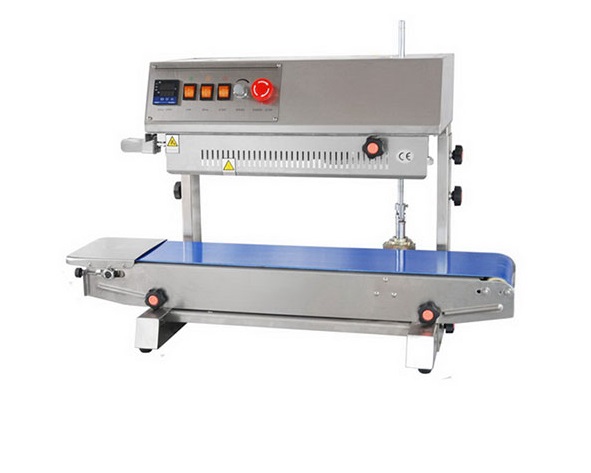

Description of Product
The machine is ideal for sealing small packages, which adopts constant temperature control system and stepless speed regulation mechanism.
It can seal plastic films made from various materials continuously.
Embossing wheel and counting device are optional.
INCREASES OUTPUT DUE TO FASTER SEALING
10MM SEALING WIDTH GIVES HIGH QUALITY FINISHING
CAN SEAL ANY HEAT SEALABLE ITEMS I.E POLYHTENE, ALUMINIUM FOIL
INCREASES PRODUCTIVITY
REDUCES LABOUR COST AND CLAIMS
DUE TO FAST OUTPUT, POWER CONSUMPTION IS LESS
|
|
|
|
Voltage (V/Hz) |
AC 220/50 110/60 |
|
Power (W) |
50 |
|
Sealing Power (W) |
300×2 |
|
Sealing Speed (m/min) |
0-12 (0-16) |
|
Sealing Width (mm) |
10 |
|
Temperature Range (℃) |
0-300 |
|
Printing Type |
Steel wheel embossing wheel printing (optional) |
|
Distance from Sealing Center to Conveyor Table (mm) |
200-320 |
|
Conveyor Size (L×W) (mm) |
840×180 |
|
Max. Conveyor Loading for Single Package (kg) |
≤1 |
|
Overall Conveyor Loading (kg) |
≤3 |
|

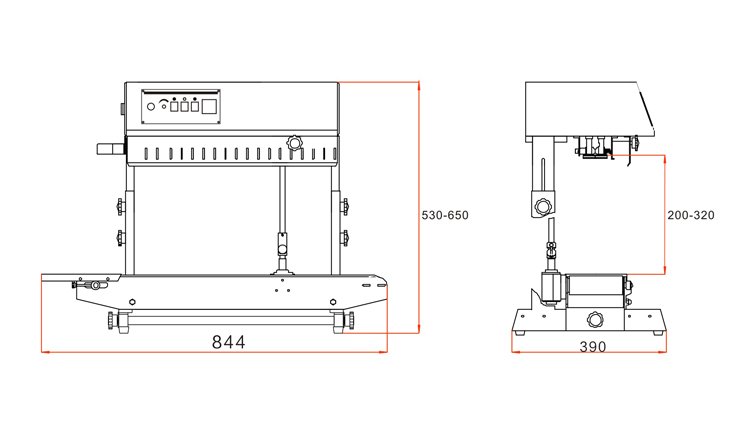

External Dimensions (L×W×H) (mm) |
840×380×530 |
|
Net Weight (kg) |
28 |
