Description of Product

Ideal for printing statutory markings/ coding on plastic / paper pouches, duplex boards / duplex cartons, labels etc.

Adopting opto-mechatronics technology, automatic temperature control, automatic counting and printing position are adjustable.
Solid ink wheel printing, clear writing, instant printing, dry color, optional color, strong adhesion.

  • Higher production speeds
  • Pouches / labels can be fed In batches
  • Uses hot melt ink
  • No ink spillage
  • No over inking
  • Lower coding costs
  • Easy to compose messages
  • Equipped with print counter/ preset counter
  • Photo electric sensor for position adjustment
  • Print wheel adjustable

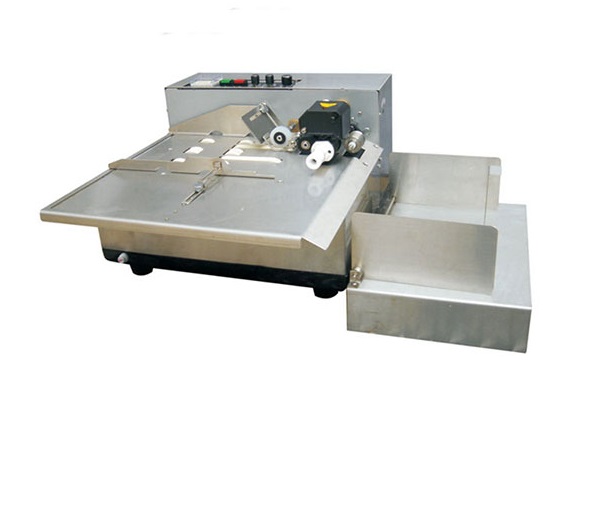

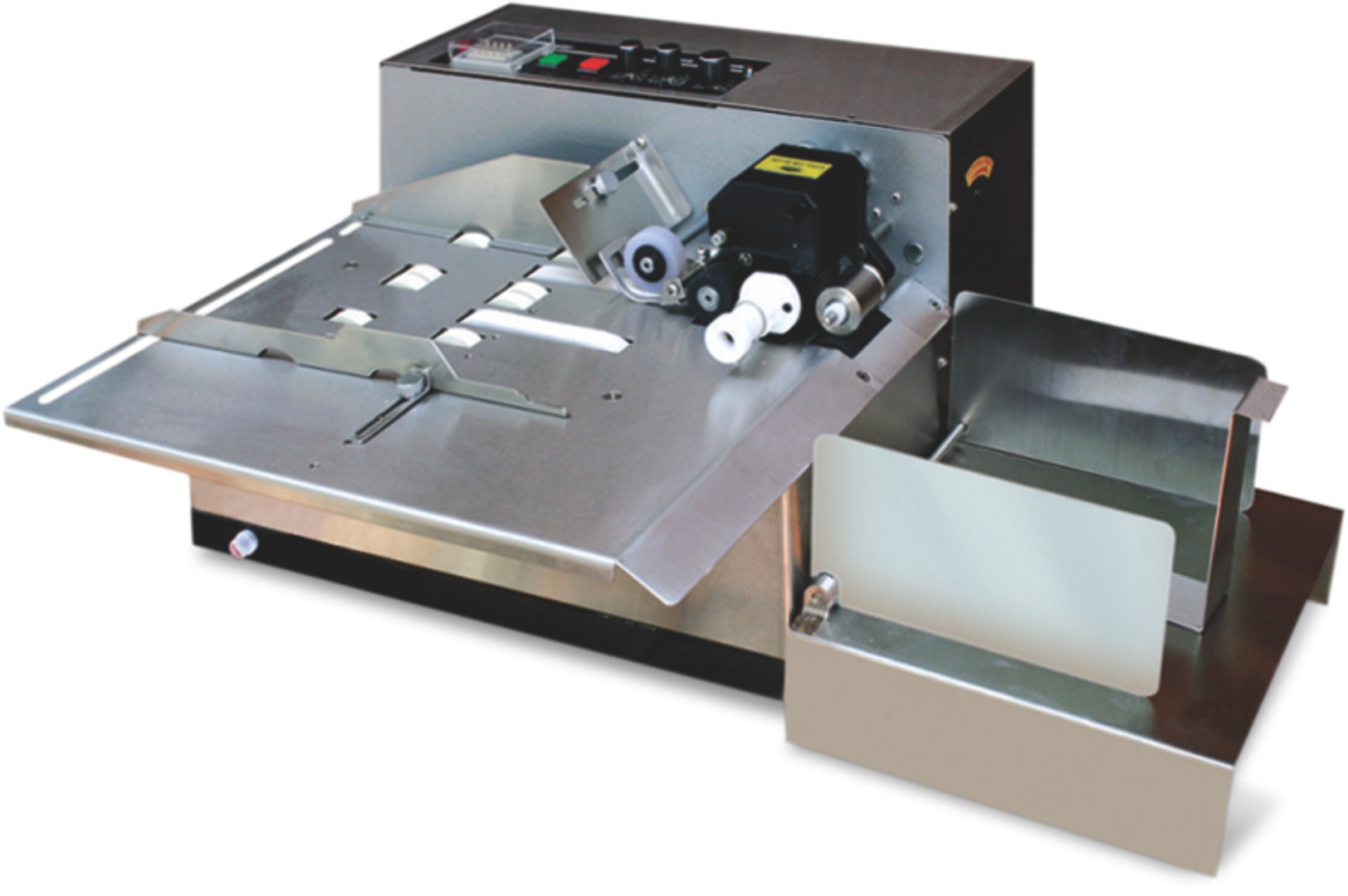

380F/W Larger Body

Power supply voltage (V/Hz)

AC 220/50 110/60

Power (W)

180

Solid ink wheel size (mm)

35×32 35×16

Printing speed (pcs/min) ≤300

Applicable print size (mm)

L: 50-500 W: 30-300

Maximum number of lines printed



T type (10.5PT): 11 lines (up to 10 words per line) R type (10.5PT): 8 lines (up to 8 words per line)



Embossing position (mm)

Unilateral 60-250 adjustment

Font size (mm)

2.5 × 1.5 (8PT) 2 × 2.5 (9PT) 3 × 3 (10.5PT) 4 × 2.5 (18PT)

Dimensions (L × W × H) (mm)

440×465×300

Net weight (Kg)

26
