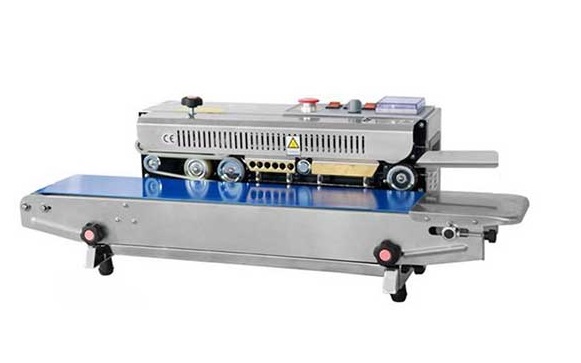

Description of Product
The Machine is ideal for sealing small packages, which adopts constant temperature control systems and stepless speed regualtions mechanism. It can seal plastic films made from various films continuously. Embossing Wheel And counting device is optional
INCREASES OUTPUT DUE TO FASTER SEALING
10MM SEALING WIDTH GIVES HIGH QUALITY FINISHING
CAN SEAL ANY HEAT SEALABLE ITEMS I.E POLYHTENE, ALUMINIUM FOIL
INCREASES PRODUCTIVITY
REDUCES LABOUR COST AND CLAIMS
DUE TO FAST OUTPUT, POWER CONSUMPTION IS LESS
Full Paint Housing Body
Half Stainless Steel Body
|
Power supply voltage (V/Hz) |
AC 220/50 |
|
Motor power (W) |
50 |
|
Electric heating power (W) |
300×2 |
|
Sealing line speed (m/min) |
0-12 (0-16) |
|
Sealing width (mm) |
10 |
|
Temperature control range (°C) |
0-300 |
|
Printing category |
Steel wheel indentation printing (optional) |
|
Sealing center to conveyor table distance (mm) |
20-40 |
|
Distance from the bottom plate to the inside of the conveyor table (mm) |
60-120 |
|
Conveyor table size (L × W) (mm) |
840×153 |
|
Maximum weight of the single piece of conveyor table (kg) |
≤1 |
|
Conveyor table total load weight (kg) |
≤3 |
|

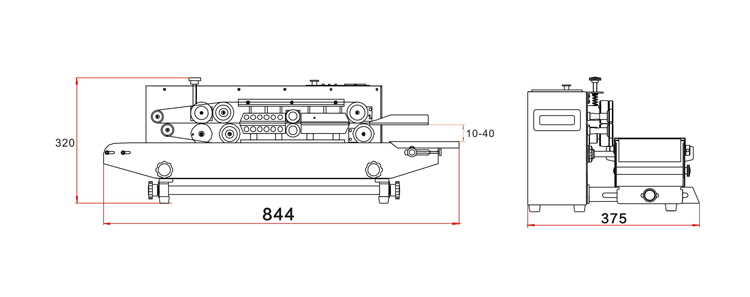

Dimensions (L × W × H) (mm) |
840×380×320 |
|
Net weight (kg) |
23 |
